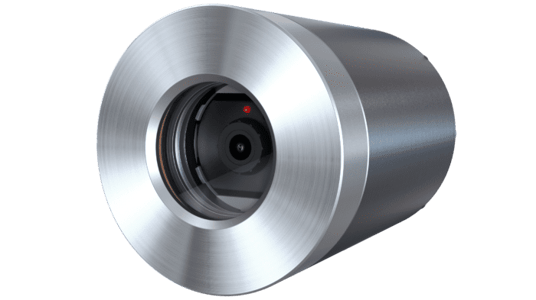

Eyes HD Gen2 Ocean Camera

Overview Features Tech Spec

Overview

View your own underwater aquarium in high definition.

Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event or rest secure when you’re away from your boat.

Overview
benefit-fish

Capture the magic of your own underwater aquarium

benefit-wrench

Tritonium™ optical lens is scratch and sea growth resistant.

HD-1080p

Capture the magic beneath your boat in full 1080p High Definition video

Eyes HD Gen2 Ocean Camera

Features

  • Full 1080p HD Full 1080p HD
  • HD-SDI Output HD-SDI Output
  • 2.1 Megapixel 2.1 Megapixel
  • 35mm (1.38") Hole in Hull
  • 12V DC
  • Aluminium Bronze / Stainless Steel Bezel Options
  • Tritonium™ Optical Lens
  • Simple to install
  • Compact and simple design
  • No Breakable Parts

SKU / Description

SKU Description
011803 Eyes HD Gen2 PAL Ocean Camera - Bronze Bezel
011806 Eyes HD Gen2 PAL Ocean Camera - Steel Bezel
011810 Eyes HD Gen2 NTSC Ocean Camera - Bronze Bezel
011811 Eyes HD Gen2 NTSC Ocean Camera - Steel Bezel
Add to Product Comparison Find a Dealer

Technical

Minimum Illumination 0.1 LUX
Minimum-Maximum operating voltage DC 9-14V DC
Current / Amp draw (DC) 12V DC 110mA MAX
Effective Pixels 1984 (H) x 1105 (v)
H. Resolution 1080 TV Lines
Angle of View 93.7˚(H) x 49.3˚(V)
Video Output HD-SDI / 1.0 Vp-p Composite ( 75Ω )
S/N Ratio More than 50dB
Electronic Iris (Auto) 1/50, 1/60 - 1/100,000 sec
Controllable Max Gain 23dB
Lens 3.7mm
Operating Temperature 14°F~112°F (-10°C~+50°C)

Mounting Recommendations

Maximum hull thickness 104mm (4”)

Physical

Overall Length 135mm (5 5/16”)
Diameter of Bezel 58mm (2 9/32”)
Total weight 65g (2.3oz)
Extension cable length (standard) 10m (30’)
Hole cut-out for body 35mm (1 3/8”)
Material Aluminium Hard Anodized Body; Aluminium Bronze AB2
Lens Tritonium™ Optical Lens

Accessories

EYES Delrin Sleeve (for metal hull installs) 001-500339
10M Extension cable for HD and NTSC 11807
20M Extension cable for HD and NTSC 11808
HDSDI to HDMI Converter 11809
EYES Camera Connector Enclosure 019908
