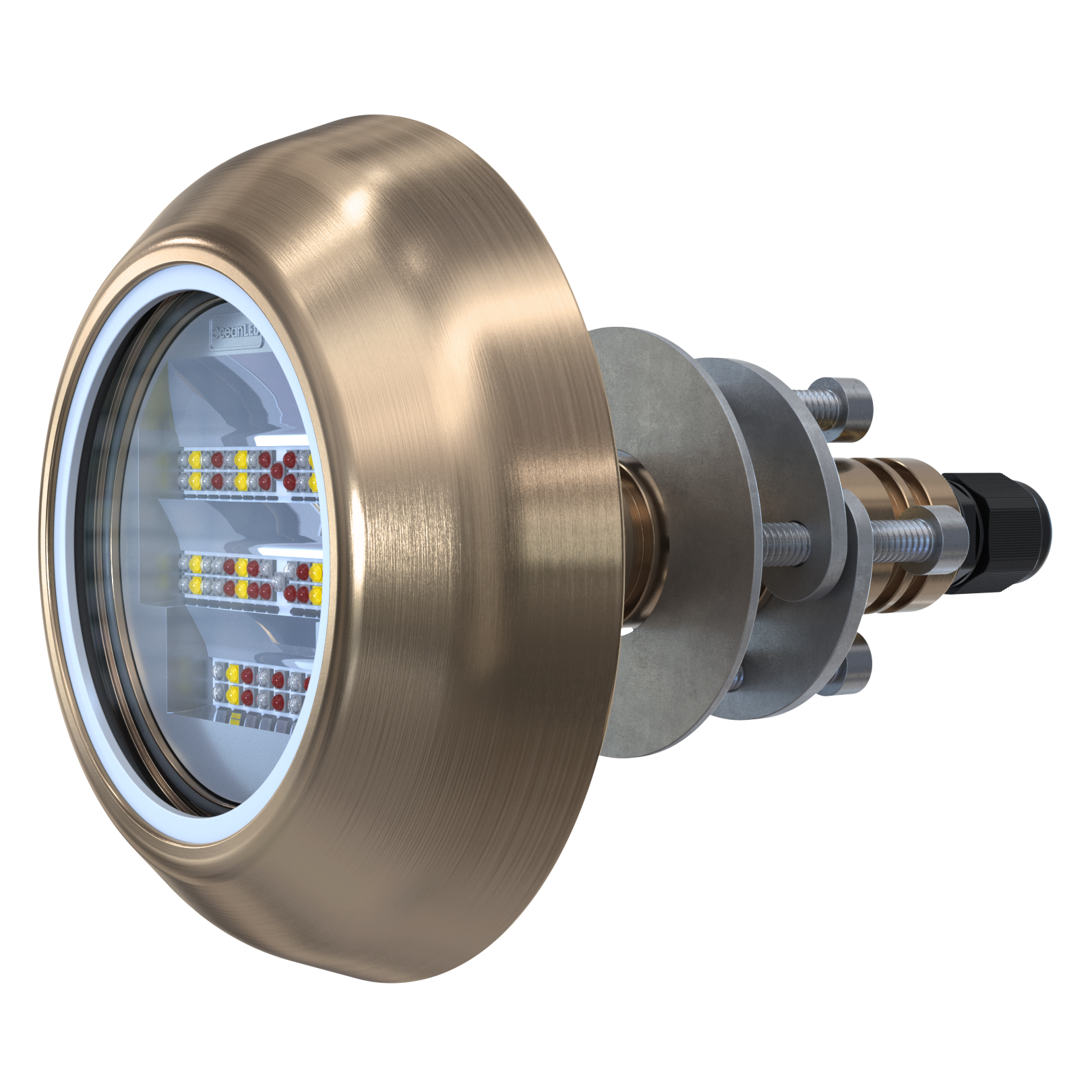

The Explore E6 & E7 TH is the perfect choice for transoms or to cater for angled hulls, that require a thru-hull style underwater LED light. The Explore TH has the same power and technical capabilities as the current E6 & E7 XFM, but in a new, compact thru-hull design.
Available in Dual Blue/White, or full RGBW Colours DMX.
The OceanLED signature advanced optics result in an amazing in-water effect that accents a yacht’s exterior lines and imposing position in the water, without any loss of beam definition.
The defined, 90˚ angle of the beam from above (looking down), delivers a halo effect around the yacht with minimal dark space near the hull when spaced effectively around the yacht.
The new Explore E7 TH has patent pending angling options from 10° up to 50°, sharing the same technology as the Explore XFM and Weld-in Series, but making it the first thru-hull underwater light on the market to have this ability.

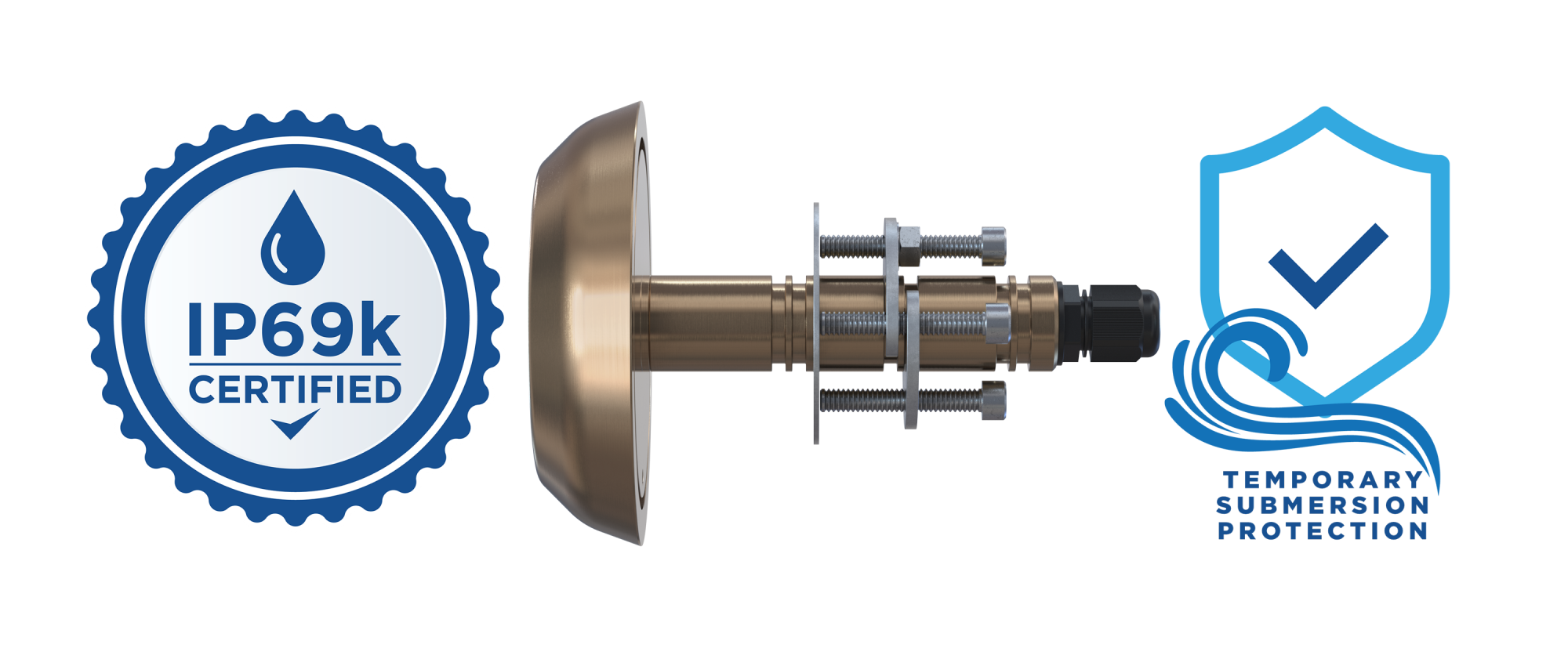

As part of our continuous strive for delivering the highest quality products to our customers, the Explore TH series is certified to the highest achievable rating of protection against water ingress, also known as IP69k.
IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.
The rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.
Superior Protection. Total Peace of Mind.
The Explore TH has a variety of ways you can control the lights, choose from the options below:
Integrated DMX Control: OceanBridge Multizone Controller
DMX Control Panel: OceanDMX TP / OceanDMX WTP Plus
Switch / Push button: Consult the installation manual for more information
Remote Control: OceanDMX RC Controller kit
Patent Pending Angling 0-50°
A wide-angled, focused beam lights up a large area of water, flooding it with light.
Small external driver for easy installation
90° Top Beam
Up to 11,000 Fixture Lumens (Ultra White)
20° Side Beam
Rectangular Beam
10° to 50° Angle Options | SKU | Description |
|---|---|
| E6TH009BW | Explore E6 TH Dual Blue/White |
| E6TH009CD | Explore E6 TH Colours DMX |
| E7TH019BW | Explore E7 TH 10 deg Dual Blue/White |
| E7TH029BW | Explore E7 TH 20 deg Dual Blue/White |
| E7TH039BW | Explore E7 TH 30 deg Dual Blue/White |
| E7TH049BW | Explore E7 TH 40 deg Dual Blue/White |
| E7TH059BW | Explore E7 TH 50 deg Dual Blue/White |
| E7TH019CD | Explore E7 TH 10 deg Colours DMX |
| E7TH029CD | Explore E7 TH 20 deg Colours DMX |
| E7TH039CD | Explore E7 TH 30 deg Colours DMX |
| E7TH049CD | Explore E7 TH 40 deg Colours DMX |
| E7TH059CD | Explore E7 TH 50 deg Colours DMX |
| Fixture Lumens (Total light output from a finished fixture) Dual Colour | 11,000 (Ultra white) |
| Fixture Lumens (Total light output from a finished fixture) Colours | 6000 |
| Beam Angle | 90˚x 20˚ |
| Angled Optics Options | 10˚, 20˚, 30˚, 40˚ & 50˚ |
| Min-Max Operating Voltage DC | 10V – 32V DC |
| Min-Max Operating Voltage AC (With AC Power Kit) | 100-240V 50/60Hz |
| Power (Dual Colour) | 113W |
| Power (Colours) | 82W |
| Current / Amp Draw (12V/24V DC) Dual Colour | 7.8A / 4.7A |
| Current / Amp Draw (12V/24V DC) Colours | 6.8A / 3.2A |
| Current / Amp Draw (110V/230V AC) Dual Colour | 1,190mA / 570mA |
| Current / Amp Draw (110V/230V AC) Colours | 830mA / 400mA |
| Driver Type | External |
| Correlated Colour Temp. | 6500K White |
| No of LEDs (Dual Colour) | 18 W, 17 B |
| No of LEDs (Colours) | 25 R, 19 G, 20 B, 20 W |
| IP Rating | IP69k Front Face, When Installed |
| Temporary Rear Submersion Protection | Yes |
| Active Thermal Control (ATC) | Yes |
| Boat Size | 20m + |
| Transom / Hull spacing | 0.5 - 1.2m (2-4’) |
| Installation depth below waterline | 25 - 30cm (10-12”) |
| (LIGHT) | |
| Diameter of Body | 110mm (4.33”) |
| Profile of Body | 26mm (1”) |
| Overall Length | 152mm (5.98”) |
| Minimum Withdrawal Space Required | 212mm (8.35”) |
| Hole Cut-Out | 25mm (0.94”) |
| Total Weight | 1.06kg (3.5lbs) |
| Light Body Material | AB2 Aluminium Bronze Aluminium |
| Optics | Linear Micro-Faceted Reflector |
| (DRIVER) | |
| Diameter | 104mm (4.10”) |
| Height | 59mm |
| Length | 149mm (5.86”) |
| Material | Aluminium |
| Total Weight | 0.60kg (1.3lbs) |
| DC Power Kit | #019903 |
| AC Power Kit | #019904 |
| Switch / 3rd Party Control Input Kit | #012923 |
| Control Link Cable (3m) | #012924 |
| Control Link Cable (5m) | #012925 |
| Control Link Cable (10m) | #012926 |
| Control Link Cable (15m) | #012927 |
| Control Link Cable (20m) | #012928 |
| E-TH Delrin Isolation Sleeve Kit | #019914 |
