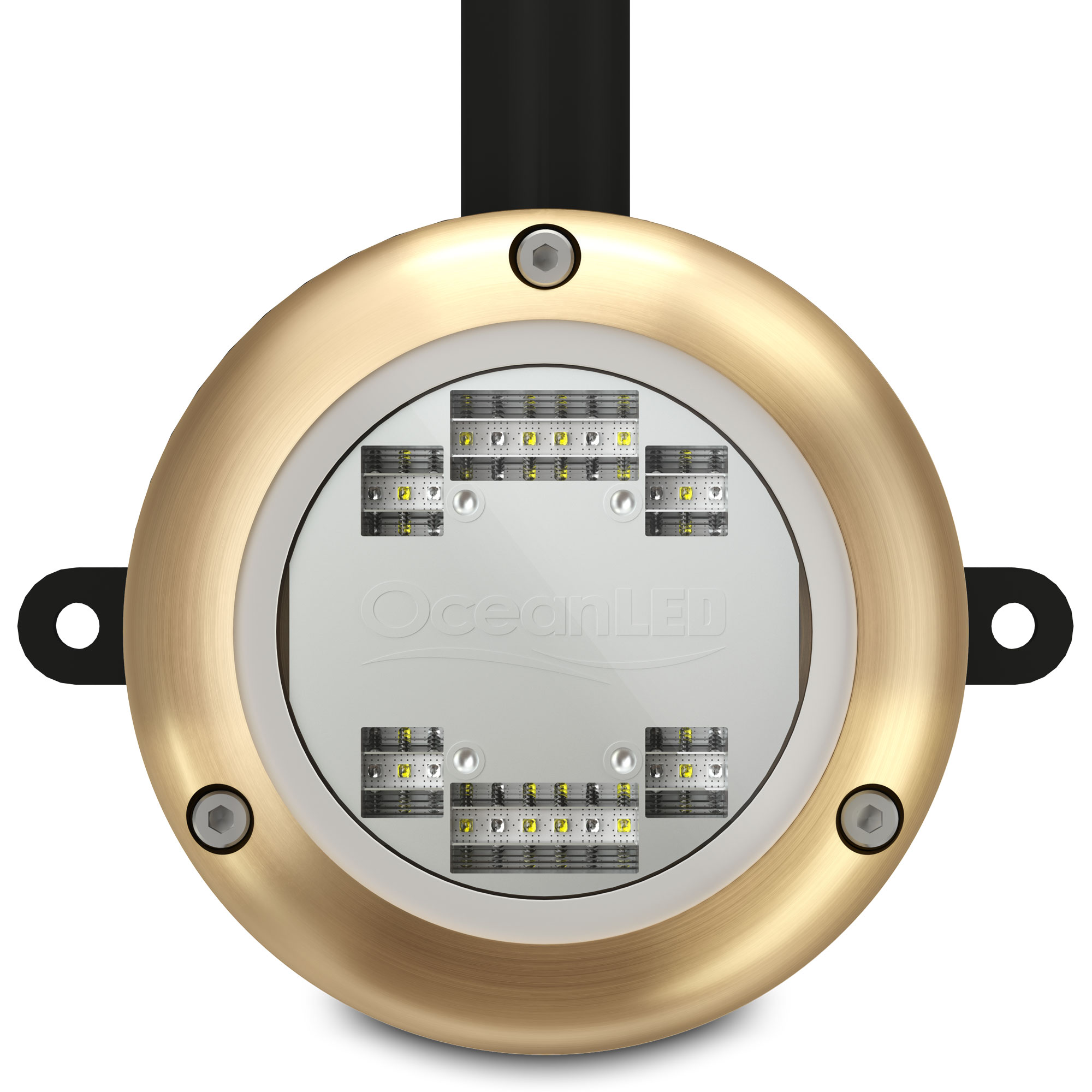

Sport S3124d Underwater LED Dock Light

Overview

With twice the amount of LEDs as its competitors, the dual colour S3124d is the leader in its class. Simply toggle the power between white, blue and fade modes.

Overview

Create a stunning light display at your dock

Create a stunning backdrop to your dock parties and provide safety and security.

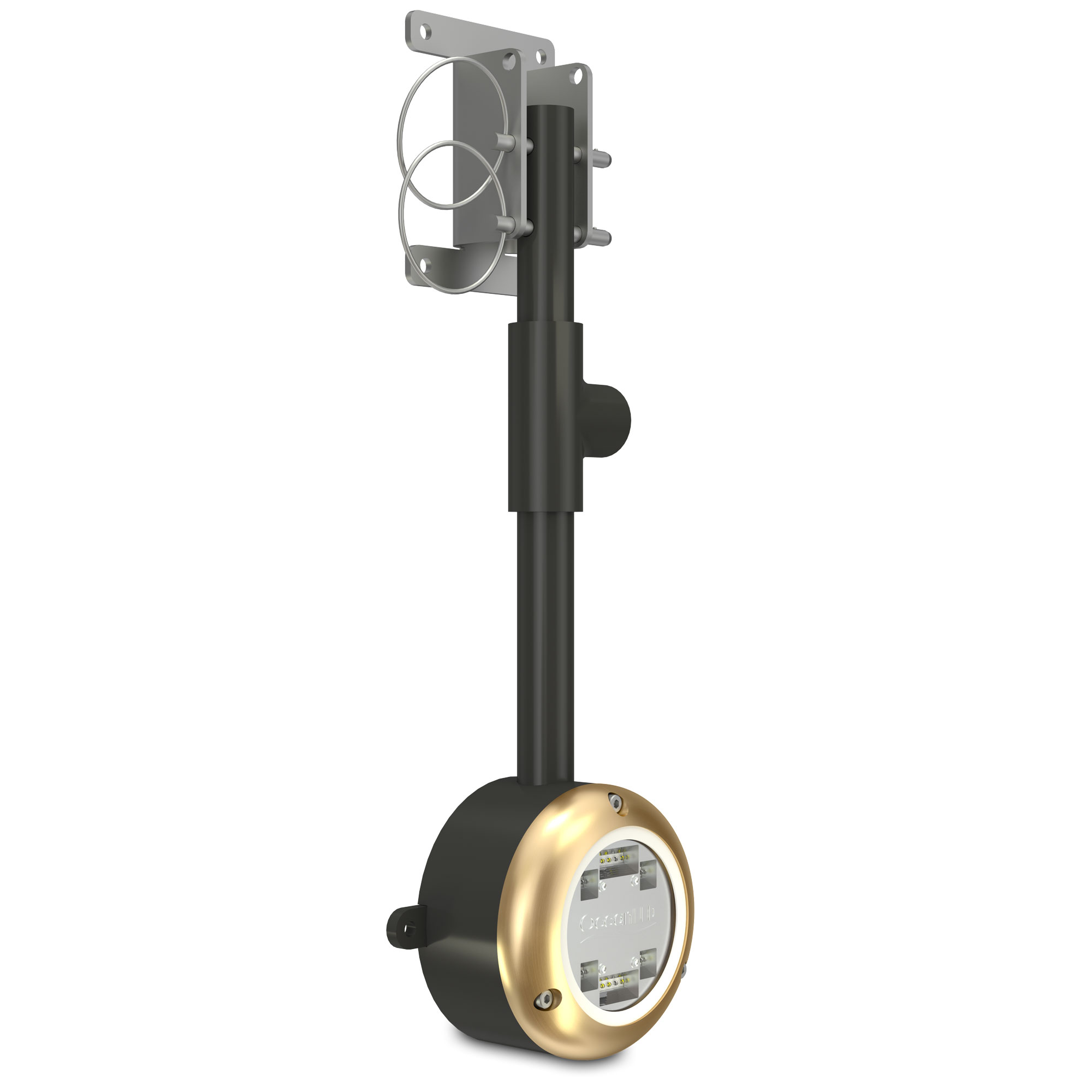

Floating Dock Option

Floating Dock Option

Allows attachment to floating pontoons. The Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean.

IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Sport Docklight Series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

Advanced Optics

  • lluminates a significantly larger area than its competitors
  • Narrower focused side beam angle providing greater water penetration
  • True 90˚ beam angle with no fading at the edge gives better illumination
Advanced Optics
benefit beam

90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

optics

Brightest dock light in its class provides safety and security at your dock.

benefit-wrench

A choice of fixed or floating brackets, depending on tidal factors or dock type.

Sport S3124d Underwater LED Dock Light

Features

  • 90° Top Beam 90° Top Beam
  • Up to 3000 Fixture Lumens Up to 3000 Fixture Lumens
  • 20° Side Beam 20° Side Beam
  • Rectangular Beam Rectangular Beam
  • Brightest dock light in its class
  • Provides safety and security at your dock
  • IP69k Certified
  • Create a stunning backdrop to your dock parties
  • Increase interest and value in your property
  • Easi-Kleen floating bracket option
  • Simple to install
  • Active Thermal Control prevents overheating
  • Fade between blue/white.
  • Select your desired startup colour
  • 10m Extension cable length (standard)

Colours Available

  • Midnight Blue / Ultra White

Technical

Fixture Lumens 3000
IP Rating IP69k Certified
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 20-32V DC
Current / Amp draw (DC) 24V DC 1.7A
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Dock spacing 5-10’ (1.5-3m)
Installation depth (To top of fixture) 12” (30cm)

Physical

Total weight 1.2kg
Extension cable length (standard) 32.8” (10m)
Hole cut-out for cable entry 0.5” (12.5mm)
Material AB2 Aluminium Bronze

Accessories

Sport DockLight Floating Kit 012108
4 Way V DC Power Junction Box 019901
Power Supply 001-600072
Ocean LED 24v (Universal Input) P.S.U (IP67 Rated) 320W 010932
