Sport S3166d Underwater LED Dock Light

Overview

The Sport S3166d gives your dock parties a dramatic backdrop with a stunning multi-colour light display.

Overview

The most powerful multi-colour underwater led dock light available

More dedicated LED’s per colour than leading competitor models utilising full RGBW colour mixing. This allows you to choose any colour you wish or scroll through the spectrum to attract marine life creating your own aquarium.

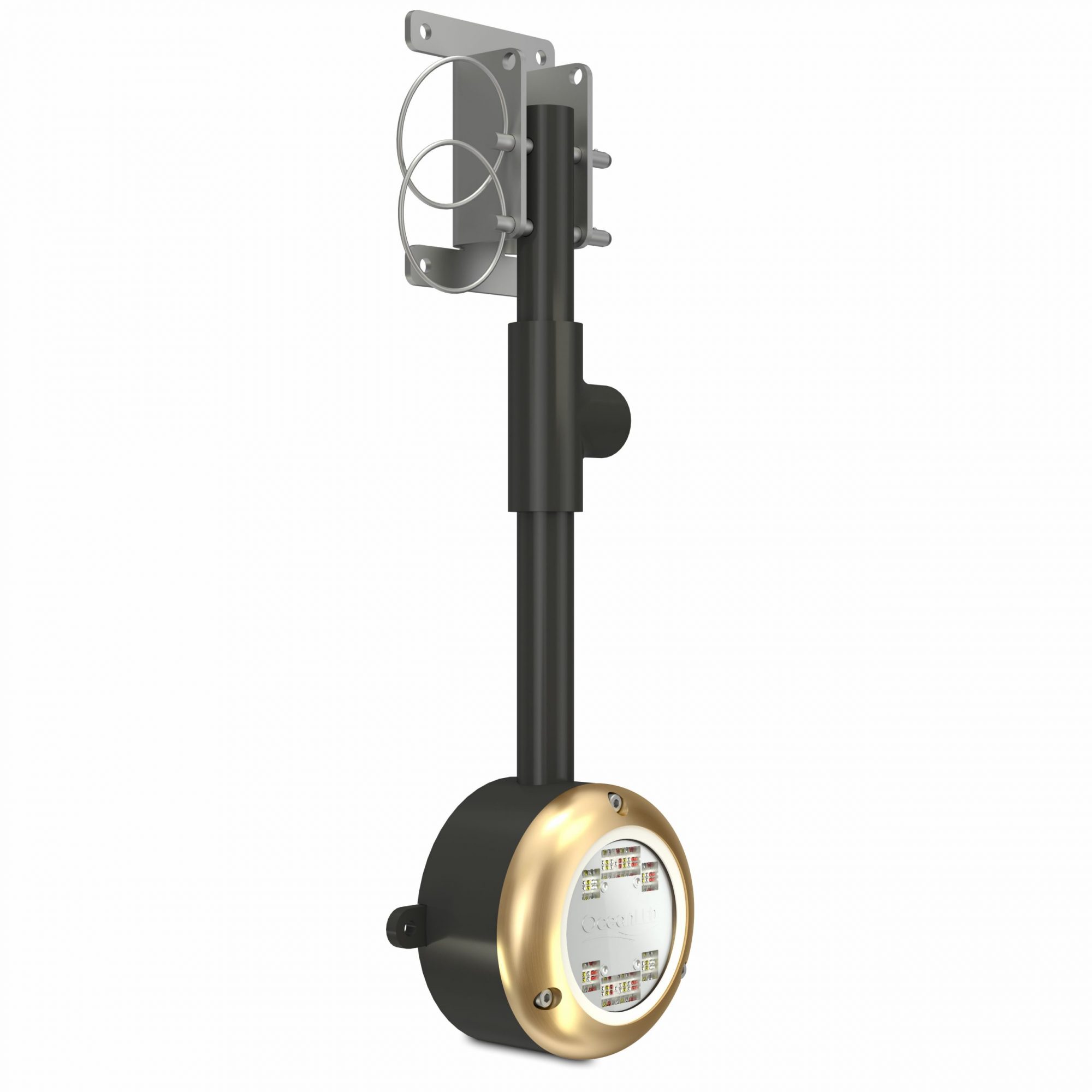

Floating Dock Option

Floating Dock Option

Allows attachment to floating pontoons. The Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean.

IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Sport Docklight Series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

Advanced Optics

  • Illuminates a significantly larger area than its competitors
  • Narrower focused side beam angle providing greater water penetration
  • True 90˚ beam angle with no fading at the edge gives better illumination
Advanced Optics
benefit beam

90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

optics

More dedicated LED’s per colour than leading competitor models utilising full RGBW colour mixing.

benefit-fish

Choose any colour you wish or scroll through the spectrum to attract marine life creating your own aquarium

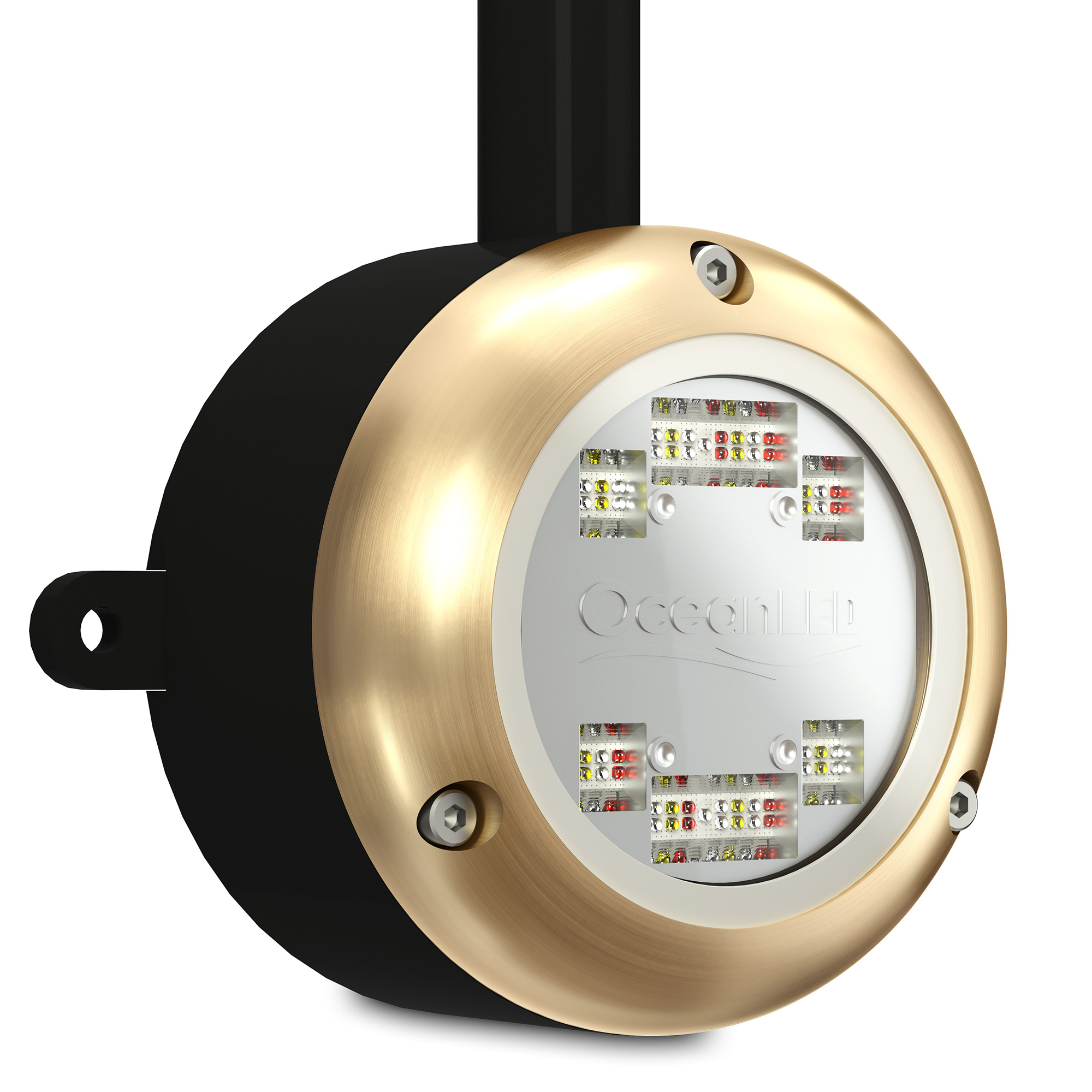

Sport S3166d Underwater LED Dock Light

Features

  • Up To 3,500 Fixture Lumens Up To 3,500 Fixture Lumens
  • 90° Top Beam 90° Top Beam
  • Rectangular Beam Rectangular Beam
  • 20° Side Beam 20° Side Beam
  • Brightest dock light in its class
  • Provides safety and security at your dock
  • IP69k Certified
  • Create a stunning backdrop to your dock parties
  • Increase interest and value in your property
  • Easi-Kleen floating bracket option
  • Simple to install
  • Active Thermal Control prevents overheating
  • 10m Extension cable length (standard)

Colours Available

  • Multi-Colour

SKU / Description

SKU Description
012107C Sport Series S3166d Underwater LED Dock Light

Technical

Fixture Lumens 3500
IP Rating IP69k Certified
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 20-32V DC
Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum) 24V DC 2.4A
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Dock spacing 2-4’ (0.5-1.2m)
Installation depth (To top of fixture) 12” (30cm)

Physical

Total weight 1.2kg
Cable length (standard) 32.8” (10m)
Conduit Size 0.5” (12.5mm)
Material AB2 Aluminium Bronze

Accessories

Sport DockLight Floating Kit 012108
4 Way V DC Power Junction Box 019901
Power Supply 001-600072
Ocean LED 24v (Universal Input) P.S.U (IP67 Rated) 320W 010932
